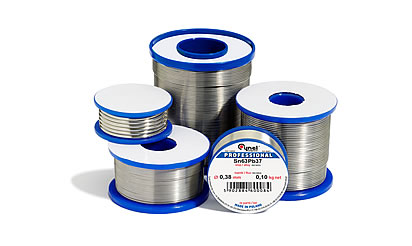

Sn63Pb37 PRO

An alternative to the most popular solder wire (Sn60Pb40) with flux, for professional use.

  • Contains Pb
  • Low activity
  • Colophony-based
  • Halide free

Alloy designation in accordance with ISO 9453:2014: Sn63Pb37E (102)
Product type: Cored solder wire
Flux: PRO

1. General characteristics

The product is intended for professional use. The solder Sn63Pb37E* was produced in the first smelt of tin and lead. The composition of the solder complies with the ISO 9453:2014 standard. The solder contains rosin and halogen free flux. The flux PRO has good spread and its J-STD classification is ROM0. It is basic leaded alloy for manual, automatic and robotic processes used in industrial applications in electronics and electrical engineering, where meeting the requirements of the RoHS2 Directive is not required.
* Higher cleanliness class.

2. Chemical compositions, mass fraction in %

Sn Pb Sb Bi Cd Cu Au In Ag Al As Fe Ni Zn
62,50 - 63,50 rest max 0,05 max 0,05 max 0,002 max 0,08 max 0,05 max 0,10 max 0,10 max 0,001 max 0,03 max 0,02 max 0,01 max 0,001

3. Physical characteristics

Melting point (solidus/liquidus)183°C
Density8,40 g/cm3
Electrical conductivity0,145 μΩ•m
Thermal conductivity50 W/m•K
Tensile strength525 kgf/cm2
Elongation at break37%
Hardness17 HB
Suggested operating temperatures340 - 420°C (recommended soldering temperature above 380 °C)

4. PRO flux

acc. to DIN 8511SW32
acc. to ISO 94541.1.3B
acc. to J-STD-004ROM0
Flux content3,0 +/- 0,2% other on request
Halide content0,0 %
Acid Value305 ±10 mg KOH/g
SIR test (PN-EN ISO 9455-17)pass (above 100 MΩ)

5. Other information

Available diameters

0,25 • 0,38 • 0,50 • 0,56 • 0,70 • 0,80 • 0,90 • 1,00 • 1,20 • 1,50 • 1,60 • 2,00 • 2,50 • 3,00 • 4,00 mm

other on request

Packed

50 g – cartons 120 pcs.
100 g – cartons 30 pcs. / 3 kg
250 g – cartons 5 kg
500 g – cartons 5 kg
1 kg – cartons 10 kg

other on request

Expiration date 3 years from the end of the year of production.
for example: batch 61112233 = date of production 2016, date of expiry 2019
Label Reels and cartons marked with alloy type, flux type, diameter, net weight and batch number.
Storage Store at room temperature, in a dry place and beyond the reach of children.

Files to download:

Sn63Pb37 PRO - Technical data sheet

Sn63Pb37 PRO - Safety data sheet

Physical, mechanical and chemical properties available in TDS (download above).
